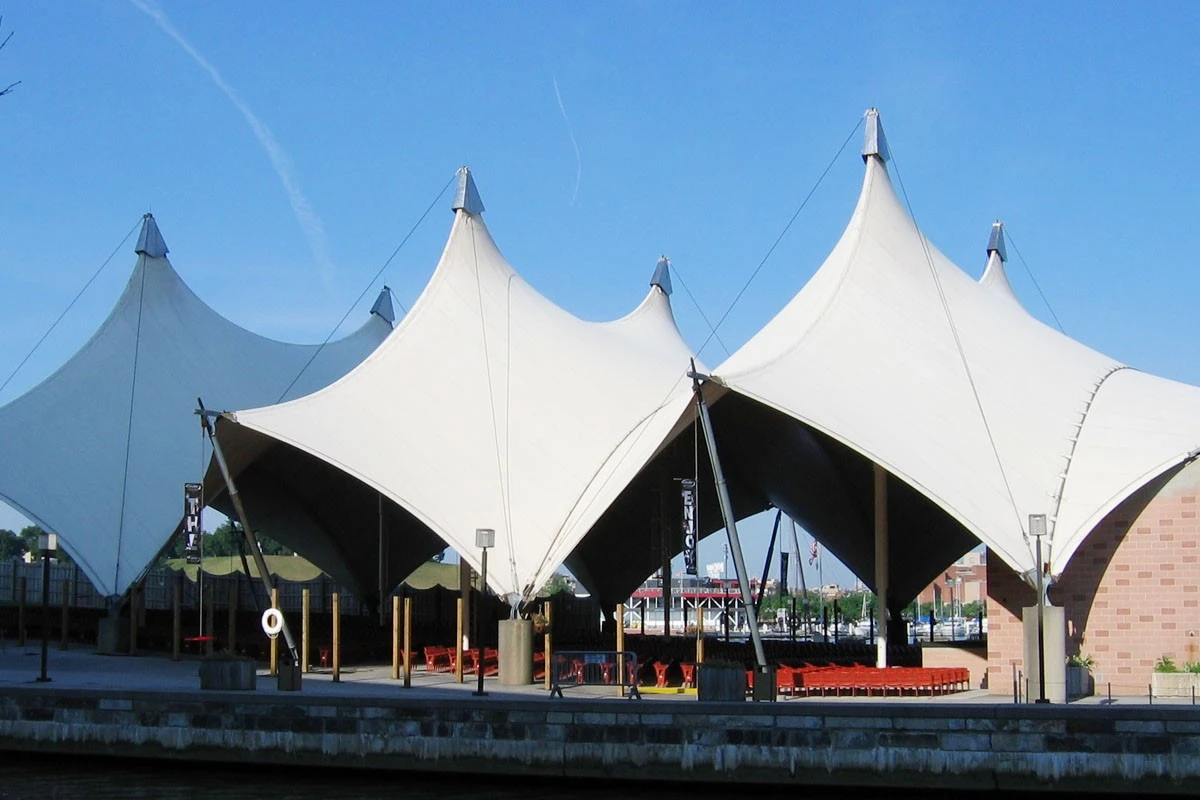

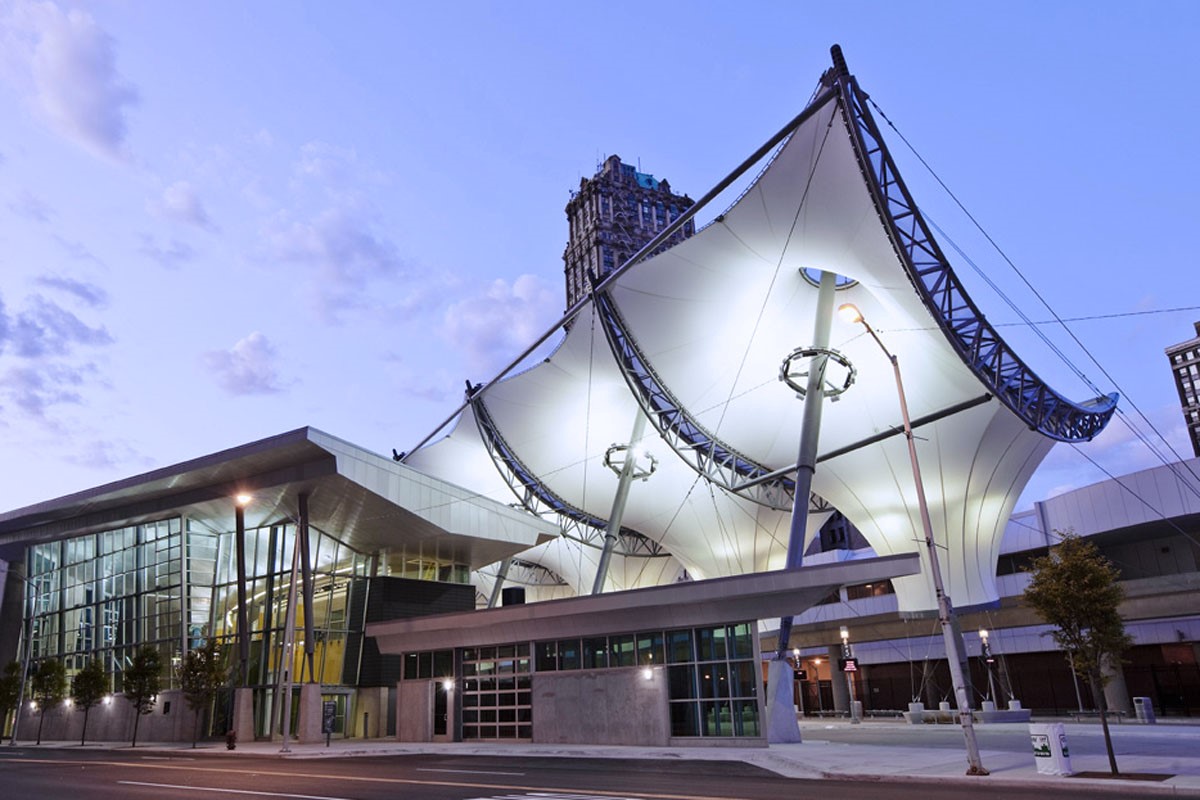

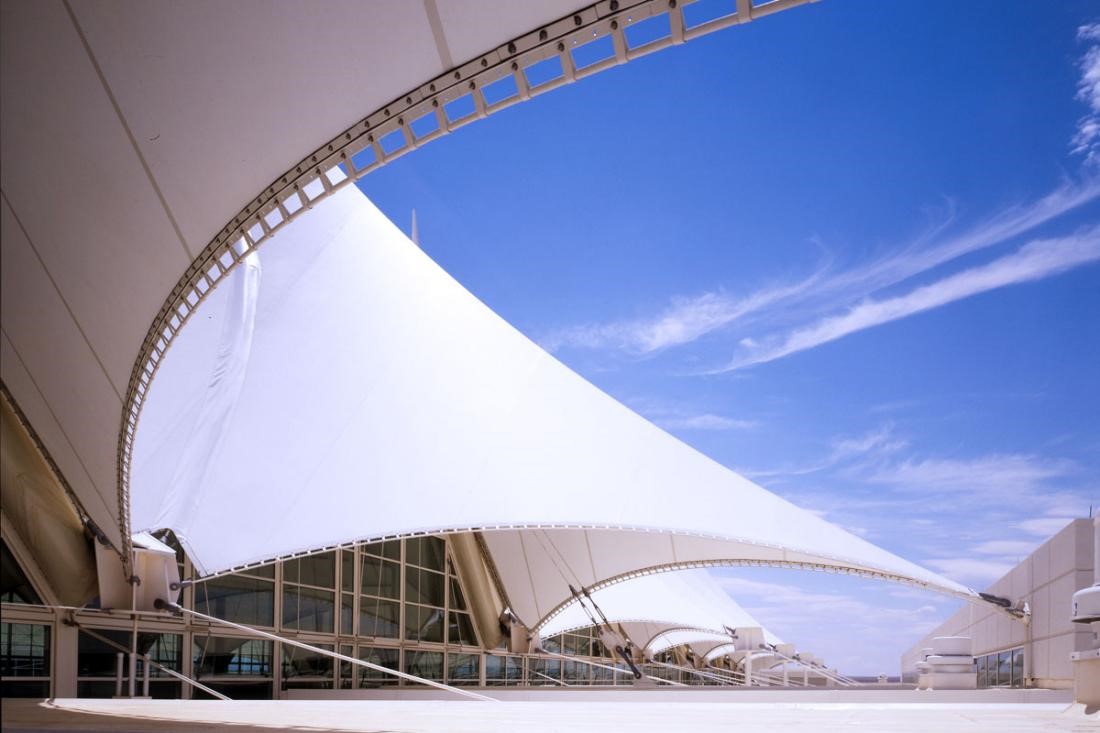

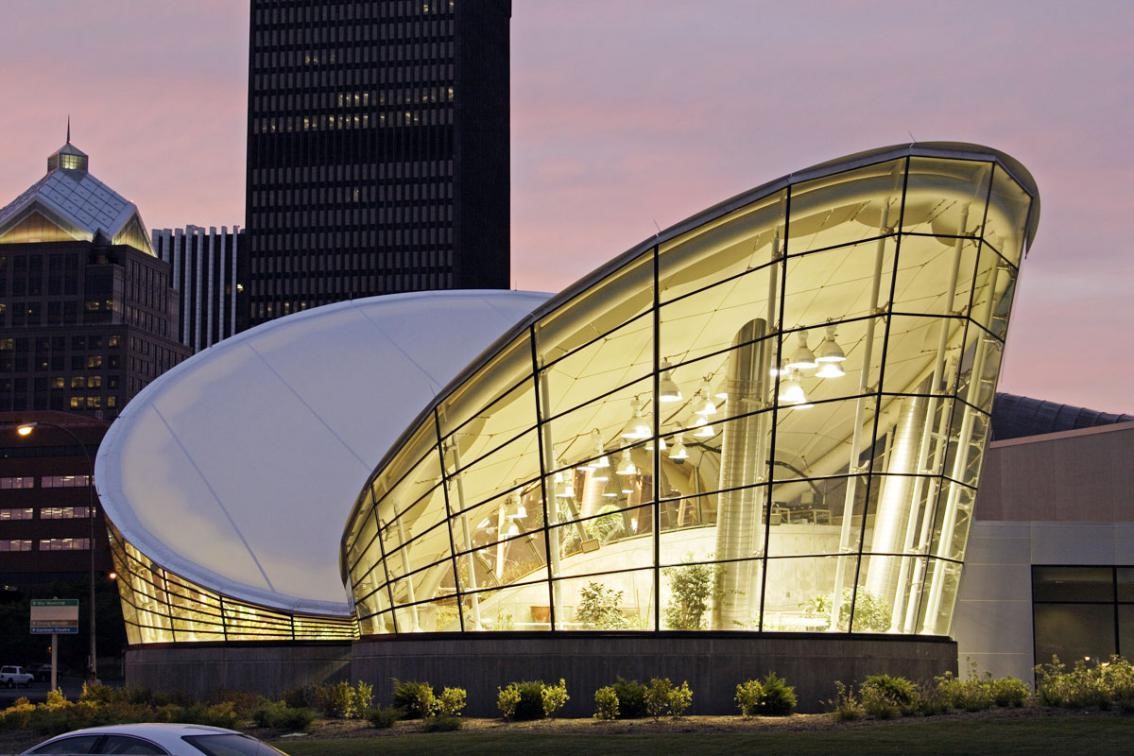

Tensile Structure
Our Tensile structure fabric is built with Panama base knife coated fabric . The use of fabric structures gives you the flexibility to create the unique design you need to beckon visitors inside. They also offer superior comfort & protection from the sun & also reduce energy costs.
Features
- Highly Flexible, yet Resistant to Cracking
- Durable and Weather-Resistant
- Excellent UV Resistant
- Easy Maintenance Guaranteed
- Self-Cleaning System Applied
- Full range of Welding Options : HF, Hot Air, Sewing, etc.
Physical Character
Properties | Units | Test method | Average value |
Base Fabric Yarn | Dtex | High tenacity polyester 1100 Dtex | |
Finish: | Glossy with two side Lacquering | ||
Coating | PVC coating | ||
Color | As per the request | ||
Base Fabric Density | Thread/cm | FZ/T01003 | 30x30 Panama |
Width | cm | ||
Finished Fabric Weight | Gram/m2 | FZ/T01003 | 900±5% |
Thickness - finished product | mm | GB/T6672-2001 | 0.80±0.03 |
Tensile strength at MD | N/5cm | GB/T1040 | 3600 |
Tensile strength at CD | N/5cm | GB/T1040 | 3400 |
Tearing Strength at MD | N/5cm | GB/T16578 | 380 |
Tearing Strength at CD | N/5cm | GB/T16578 | 360 |
Peeling Strength | N/5cm | GB/T3917 | 120 |
Temperature range | ℃ | -20 ~ +70 | |
Flame retardancy | NFPA-701,B1 ,B2,M1.M2 , | Optional | |
Treatment | UV | YES | |
MOQ | M | 2000LM | |
Packing | Kraft paper | ||
Lead time | 20-25days | ||
Payment conditions: | 30% TT IN ADVANCE OR L/C AT SIGHT | ||
20'Container quantity: | About 22,000sq.meter | ||
Fields of Application :
- Tensile structures
- Large format technical textiles
- Tensile structures
- Portable storage structures
- Airport hangars
- Shade systems, shadings
- Sportshalls
- Architectural structures
WASH AND CARE OF PVC FABRICS
- Use a neutral or slightly alkaline washing liquid (do not use solvents).
- Follow the instructions of the detergent manufacturer.
- Do not use hot water (max. temperature +40 °C).
- Avoid strong mechanical abrasion.
- Rinse well after washing.
- Dry before packing or storing.
- When using a pressure washer, follow the instructions of the manufacturer.
Damaged technical fabric can be repaired using PVC adhesive and a piece of tarp
PVC coated fabric | M-GB001
ADVANTAGE OF OUR TENSILE STRUCTURE FABRICS
Durable
Aesthetic
Easy to clean
Hold their shape, stable
Manufacturing type
-PVC coated
Weight range
- approx. 750-1450gsm
Width range
-max 205cm- up to 320cm
Properties | Units | Test method | Average value |
Base Fabric Yarn | Dtex | High tenacity polyester 1100 Dtex | |
Finish: | Glossy with two side Lacquering | ||
Coating | PVC coating | ||
Color | As per the request | ||
Base Fabric Density | Thread/cm | FZ/T01003 | 30x30 Panama |
Width | cm | ||
Finished Fabric Weight | Gram/m2 | FZ/T01003 | 900±5% |
Thickness - finished product | mm | GB/T6672-2001 | 0.80±0.03 |
Tensile strength at MD | N/5cm | GB/T1040 | 3600 |
Tensile strength at CD | N/5cm | GB/T1040 | 3400 |
Tearing Strength at MD | N/5cm | GB/T16578 | 380 |
Tearing Strength at CD | N/5cm | GB/T16578 | 360 |
Peeling Strength | N/5cm | GB/T3917 | 120 |
Temperature range | ℃ | -20 ~ +70 | |
Flame retardancy | NFPA-701,B1 ,B2,M1.M2 , | Optional | |
Treatment | UV | YES | |
MOQ | M | 2000LM | |
Packing | Kraft paper | ||
Lead time | 20-25days | ||
Payment conditions: | 30% TT IN ADVANCE OR L/C AT SIGHT | ||
20'Container quantity: | About 22,000sq.meter | ||
FOB Shanghai PRICE | Please send us an email for a detail quote | ||
Fields of Application :
- Tensile structures
- Large format technical textiles
- Tensile structures
- Portable storage structures
- Airport hangars
- Shade systems, shadings
- Sportshalls
- Architectural structures
WASH AND CARE OF PVC FABRICS
- Use a neutral or slightly alkaline washing liquid (do not use solvents).
- Follow the instructions of the detergent manufacturer.
- Do not use hot water (max. temperature +40 °C).
- Avoid strong mechanical abrasion.
- Rinse well after washing.
- Dry before packing or storing.
- When using a pressure washer, follow the instructions of the manufacturer.
- Damaged technical fabric can be repaired using PVC adhesive and a piece of tarp.
