Tunnel ventilation fabric| A-GB002
Model NO :
A-GB002
minimum order :
5000
Tunnel ventilation fabric is a type of fabric designed for use in tunnels and other enclosed spaces where proper ventilation is essential. The fabric is made from high-quality materials that allow air to flow freely through the material while still providing sufficient protection against the elements. This type of fabric is often used in mining, transportation, and construction industries to prevent the buildup of harmful gases, dust, and other airborne particles. The fabric is lightweight and easy to install, making it an ideal solution for ventilation in tunnels and other confined spaces. It can also be custom designed to fit the specific needs of each project, ensuring efficient and effective ventilation. Overall, tunnel ventilation fabric is a reliable and cost-effective solution for maintaining safe and healthy working conditions in a variety of industries.
Quantity :
US $0.85 - US $1.85
Tunnel ventilation fabric| A-GB002
High-strength mine-ducting fabrics we provide quality-coated textile solutions for the challenges of ventilating deep mines and tunnels. Our fabrics are stronger and less prone to cracking and delaminating at all temperatures than inferior laminated products.Custom performance properties like rip-stop textiles and antistatic top coating options are available, tailored to your fabric requirements. Our Customer Service are always happy to advise you on which fabric configurations best suit your end-use application.
Characteristic :
- Flame resistance conforms to EN71-2 : 2011/DIN4102/UL94.

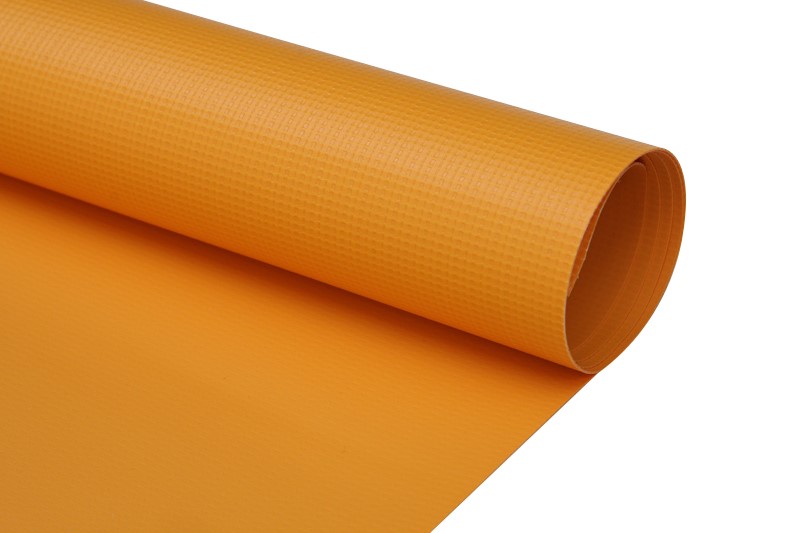

- Woven/knitted polyester fabric with both sides pvc coated.
- Low friction loss.
- Dual suspension fin/tab to withstand double pressure.
- Seam welded by hot air or HF to be airtight and provide low leakage.
- High wear resistance and tear strength.
- Anti-static feature(<3*108) optional.
- Diameter range 600-3000mm.
- Standard length 20m, custom lengths available.
- Standard coupling : zipper coupling + sleeve cover, other connection way available.
- Annual production 2,000,000m for ventilation ducts and 15,000,000 m2 duct fabric, fully meet your needs.
- Ready for fast and easy installation.
- Apply for related certification as different country or region.
Item | Unit | Result |
Color | - | black, yellow, orange or customized |
Base Fabric | - | knitted/woven polyester fabric with both sides pvc coated |
Weight | g/m2 | 400-900 or customized |
Length | m | 1-320 or customized |
Tensile Strength of Welding Joint | N/50mm | 1000-2500 or customized |
Tensile Strength (Warp/Weft) | N/50mm | 1500-3000 or customized |
Tear Strength(Warp/Weft) | N | 400-600 or customized |
Adhesion Strength | N/50mm | 60-100 or customized |
Antistatic | Ω | <3*108 or optional |
Wind Pressure Resistance | Pa | 3000-10000 |
Flame Retardant | - | EN-71/UL94/DIN4102 or customized |
Fields of Application
- Forced air feeding
- Air ducts
- Ventilation tubes
- Flow channels and tubing
- Mines ventilation
- Underground ventilation
- Debris ducts

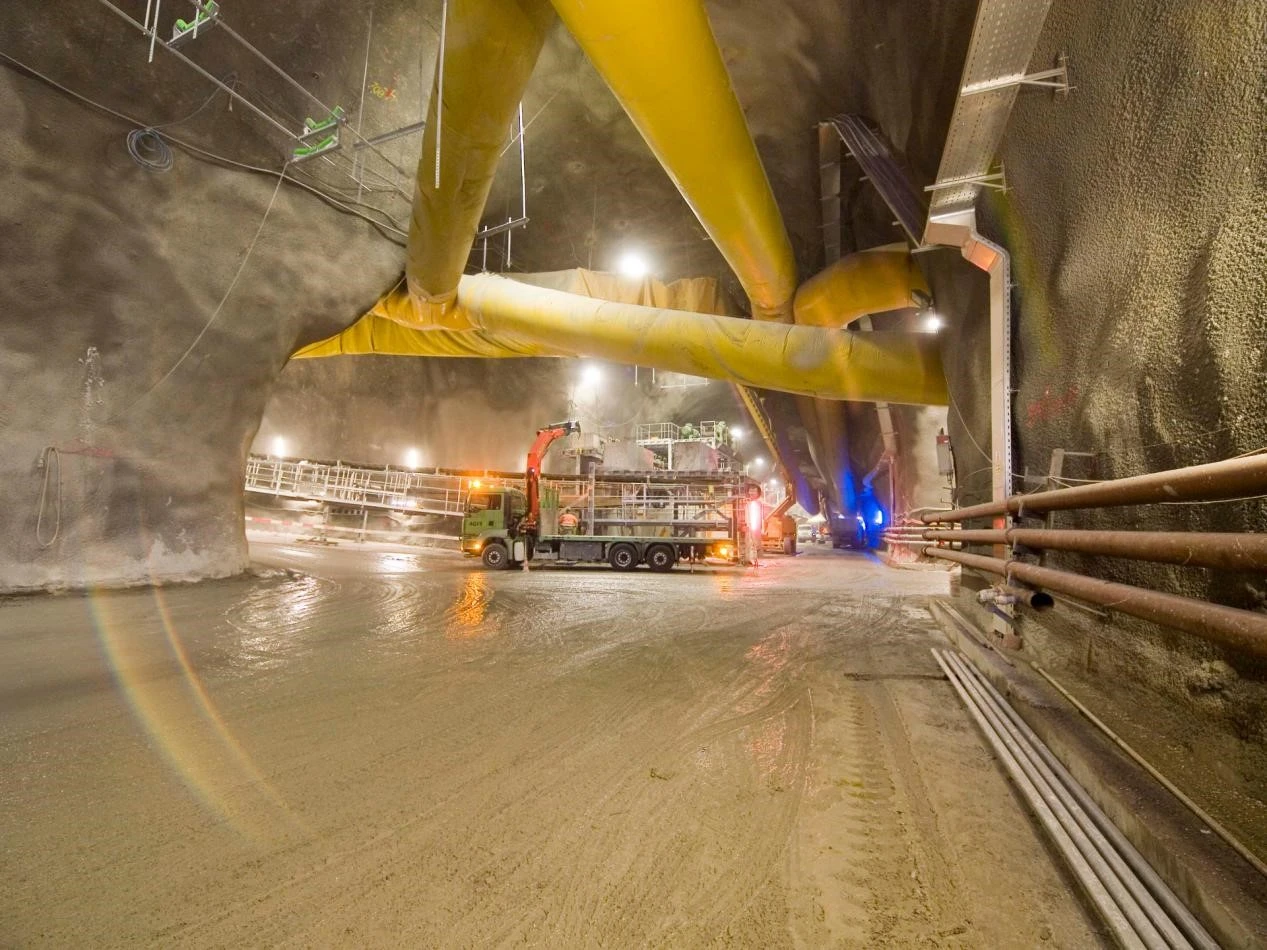

- Tunnel ventilation
