Drop Stitch Inflatable丨LS-GB001
1. High tension, high tensile force, good adhesion, high peel strength and strong composite fastness;
2. Strong, aging resistant, tortuous tear;
3. Anti-mildew, anti-corrosion, anti-corrosion;
4. Waterproof, cold resistant, anti-static, anti-radiation, anti-UV;
5. Flatness, safety, transparency, and good hand feeling ;

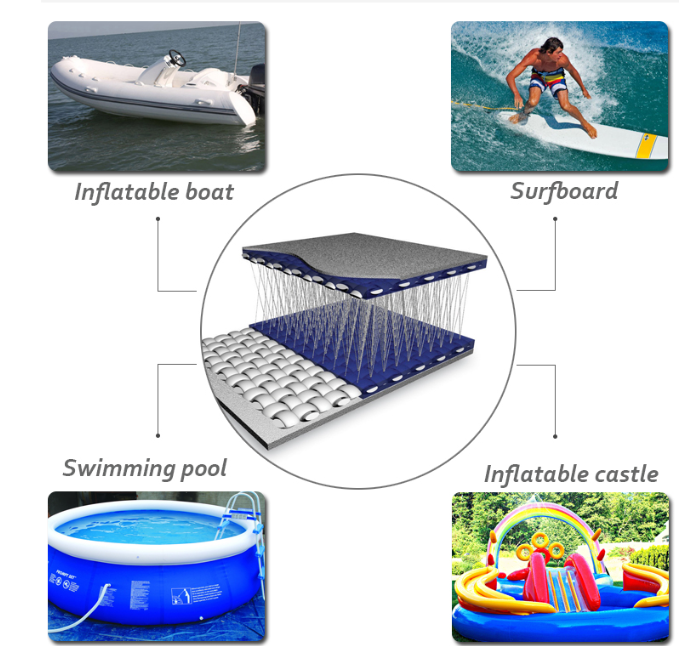

6. Widely used in inflatable boats, kayak, inflatable skateboards, inflatable toys, lifeboats, advertising cloth, water and underwater sports equipment, as well as soundproof walls, shock absorbers and other lightweight cargo inflation In the support.
Height: 5cm,8cm,10cm,12cm,15cm,20cm,30cm
Width: up to 2.10m
Weight: 2600gsm
Packing size: 30m/roll or customized
Thickness and color make to order
Technical data:
Product |
|
| 5cm | 8cm | 10cm | 12cm | 15cm | 20cm |
Pattern |
|
| Dot | Wave | Dot ,In-line | Dot | Dot ,In-line | Dot |
Base Cloth |
|
| Polyester 500D( High tensile) | Polyester 500D( High tensile) | Polyester 500D( High tensile) | Polyester 500D( High tensile) | Polyester 500D( High tensile) | Polyester 500D( High tensile) |
Space Length |
| cm | 5 (+/-5%) | 8 (+/-5%) | 10 (+/-5%) | 12 (+/-5%) | 15 (+/-5%) | 20 |
Material Total Weight |
| g/sq.m | 2700 (+/-200) | 2700 (+/-200) | 2700 (+/-200) | 2700 (+/-200) | 2700 (+/-200) | 2700 (+/-200) |
Tensile Strength (2 layers) |
| N/5cm | 4100 x 2800 (+/-300) | 4100 x 2800 (+/-300) | 4100 x 2800 (+/-300) | 4100 x 2800 (+/-300) | 4100 x 2800 (+/-300) | 4100 x 2800 (+/-300) |
Adhesion Strength (2 layers) |
| N/5cm | 150 x 150 (+/-20) | 150 x 150 (+/-20) | 150 x 150 (+/-20) | 150 x 150 (+/-20) | 150 x 150 (+/-20) | 150 x 150 (+/-20) |
Pressure | Recommended | PSI(lbs/inch2) | 15 | 15 | 15 | 15 | 15 | 15 |
Maximum | PSI(lbs/inch2) |
| 30 | 3030 | 30 | 30 | 30 | |
Standard Width |
| Metre |
| 2.06 | 1.55/1.68 | 1.68/1.85 | 1.68/1.85 | 2.03 |
Surface |
|
| Matt | Matt | Matt | Matt | Matt | Matt |
Length (standard) |
| Metre | 30,100,150,250 | 30,100,150,250 | 30,100,150,250 | 30,100,150,250 | 30,100,150,250 |
