PVC tarpaulin doors | M-GB002
Characteristic :
PVC coated fabric for High speed doors is specifically designed and engineered for high speed roll-up doors. This with a high strength polyester fabric offers superior tensil and tear properties.

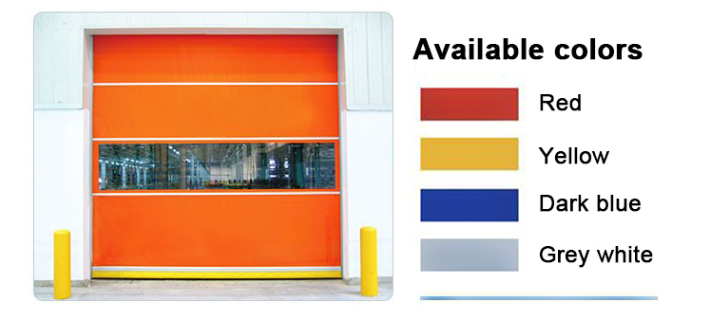

This flame resistant fabric comes with a smooth finish. Standard color is dark blue ,yellow and white
Fabric features include:
Excellent puncture resistance
High tear strength
Outstanding UV Resistance
Excellent coating adhesion to fabric to inhibit peeling
Low thermal expansion/contraction
Flame retardant
RF and heat weldable
A wide range of weights, widths and colours make all manufacturing options possible.
Application:
- Fast shutter doors,
- Dock seals
- High speed doors
- Warehouse doors
- Emergency doors
- High speed doors
- Fast doors
- Industrial doors
Properties | UND-TC010 | UND-TC011 | ||
| Metric | Lbs | Metric | Lbs |
Weight | 900GSM | 26.5oz/sq.yd | 1100GSM | 32oz/sq.yd |
Tensile strength | 4300/3800N | 460/450 lbs/in | 4300/3800N | 460/450 lbs/in |
Tearing stength | 530/480N | 150*140 lbs | 530/480N | 150*140 lbs |
Adheesion | 100N(/5CM) | 10 lbs/in | 100N(/5CM) | 10 lbs/in |
Flame Retardant | Pass | Pass | Pass | Pass |
UV resistance | Good | Good | Good | Good |
Cold crack | -30ºC | -22 ˚F | -30ºC | -22 ˚F |
Width | Width up to 320 cm | Width up to 126 inch | Width up to 320 cm | Width up to 126 inch |
Roll Length | 50-100MTS(YDS) | |||
