Drop stitch inflatable fabric | D-GB001
Specifications：
Available size
Height: 5cm-30cm
Width: 1m, 1.55m, 2m
Weight: 2200gsm
Packing size: 30m/roll
Thickness and color make to order
Our advantage :
1. The surface style is good, and both sides of the face are more flat and beautiful.
2.100% does not leak, non-sticky
3. Good stiffness, small deformation and bending after stress
4. Up, down, left and right partial wire control within 1cm
5. The finished product is not deformed, and drop stitch fabric has good stability.
6. MOQ is only at 350M
7. Short delivery time, delivery within 15-20 days
8. Provide different packaging methods (roll packaging and pallet packaging)
9. The price advantage is very obvious, cost-effective
10. Good peeling and non-sticking
Technical data:
Product | 5cm | 8cm | 10cm | 12cm | 15cm | 20cm | ||
Pattern | Dot | Wave | Dot ,In-line | Dot | Dot ,In-line | Dot | ||
Base Cloth | Polyester 500D( High tensile) | Polyester 500D( High tensile) | Polyester 500D( High tensile) | Polyester 500D( High tensile) | Polyester 500D( High tensile) | Polyester 500D( High tensile) | ||
Space Length | cm | 5 (+/-5%) | 8 (+/-5%) | 10 (+/-5%) | 12 (+/-5%) | 15 (+/-5%) | 20 | |
Material Total Weight | g/sq.m | 2700 (+/-200) | 2700 (+/-200) | 2700 (+/-200) | 2700 (+/-200) | 2700 (+/-200) | 2700 (+/-200) | |
Tensile Strength (2 layers) | N/5cm | 4100 x 2800 (+/-300) | 4100 x 2800 (+/-300) | 4100 x 2800 (+/-300) | 4100 x 2800 (+/-300) | 4100 x 2800 (+/-300) | 4100 x 2800 (+/-300) | |
Adhesion Strength (2 layers) | N/5cm | 150 x 150 (+/-20) | 150 x 150 (+/-20) | 150 x 150 (+/-20) | 150 x 150 (+/-20) | 150 x 150 (+/-20) | 150 x 150 (+/-20) | |
Pressure | Recommended | PSI(lbs/inch2) | 15 | 15 | 15 | 15 | 15 | 15 |
Maximum | PSI(lbs/inch2) | 30 | 3030 | 30 | 30 | 30 | ||
Standard Width | Metre | 2.06 | 1.55/1.68 | 1.68/1.85 | 1.68/1.85 | 2.03 | ||
Surface | Matt | Matt | Matt | Matt | Matt | Matt | ||
Length (standard) | Metre | 30,100,150,250 | 30,100,150,250 | 30,100,150,250 | 30,100,150,250 | 30,100,150,250 |
Fields of Application :
1. Inflatable boat bottom
2. Surfing board
3. Air mat
4. Bed mattress
5. RV car mat.
Inflatable swimming pool
Bedding, Mattress, air deck, surfboard, bed mattress, sup board, inflatable paddle board
（密度0%）
Water tank tarpaulin| W-GB002Water tank tarpaulin is a type of durable, waterproof fabric material used to construct large, temporary or semi-permanent water storage tanks. It is made from a combination of synthetic materials that are resistant to UV radiation, weathering and corrosion. This type of tarpaulin is specifically designed to withstand the elements and be used in harsh environments. Water tank tarpaulins are commonly used in areas where there is limited access to municipal water supply or where water is needed for irrigation, disaster relief, and firefighting. The tanks are easy to install and can be quickly disassembled when no longer needed. The tarpaulin can be customized to fit specific requirements and can be fabricated in various sizes and shapes to meet the needs of the user. Additionally, water tank tarpaulins are affordable and require minimal maintenance. They are a popular choice for rural communities and construction sites where access to clean water is limited.W-GB002US $0.92 - US $1.75Send Inquiry
Fabric water tank| W-GB001A Fabric water tank is a type of water storage container made from a high-quality and durable fabric material. It is designed to provide a cost-effective, easy-to-install, and portable solution for storing water. The tank is available in various sizes, ranging from small, household-sized tanks to much larger tanks used for industrial or agricultural purposes. The fabric used for the tank is resistant to UV rays, punctures, and tears, ensuring that it is long-lasting and can withstand various weather conditions. The tank is also easy to maintain and can be cleaned easily using mild soap and water. Fabric water tanks are an ideal solution for areas with limited access to water or where a reliable water supply is essential for daily life, such as remote communities, farms, and disaster relief camps.W-GB001US $0.93 - US $1.85Send Inquiry

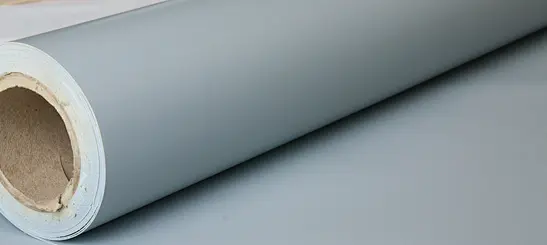

PVC vinyl for airduct| A-GB004Firstly, the PVC vinyl is highly durable, which means that it will stand up to the wear and tear of everyday use, without deteriorating or degrading. This makes it an ideal choice for use in both residential and commercial settings. In addition to its durability, our PVC vinyl is easy to install and can be cut to fit any size or shape of air duct. This makes it a versatile solution for a wide range of applications. Our PVC vinyl is also resistant to heat, moisture, and chemicals, which ensures that it will perform well even in the harshest industrial settings. This makes it an excellent choice for use in factories, warehouses, and other industrial facilities. Overall, our PVC vinyl for air ducts is an outstanding choice for anyone who wants to protect and enhance their air ducts. We are confident that you will be pleased with the quality of our products and we look forward to working with you. Thank you for considering our PVC vinyl for air ducts.A-GB004US $0.85 - US $1.86Send Inquiry
PVC coated fabric| A-GB003PVC coated fabric is a type of fabric that has a polyvinyl chloride (PVC) coating on one or both sides. This makes the fabric waterproof, durable, and resistant to abrasions, chemicals, and ultraviolet (UV) rays. PVC coated fabric is widely used in industries such as construction, transportation, and agriculture, as it is ideal for applications that require high strength and excellent weather resistance. Additionally, the fabric can be customized to meet specific requirements such as color, weight, and texture. PVC coated fabric is also easy to clean and maintain, making it a popular choice for outdoor furniture, awnings, and tents. Overall, PVC coated fabric is a versatile and cost-effective material that offers long-lasting protection against environmental factors, making it an excellent choice for a wide range of applications.A-GB003US $0.85 - US $1.86Send Inquiry
