Double wall fabric | D-GB001
Product Features:
1. High tension, high tensile force, good adhesion, high peel strength and strong composite fastness;
2. Strong, aging resistant, tortuous tear;
3. Anti-mildew, anti-corrosion, anti-corrosion;
4. Waterproof, cold resistant, anti-static, anti-radiation, anti-UV;
5. Flatness, safety, transparency, and good hand feeling ;
6. Widely used in inflatable boats, kayak, inflatable skateboards, inflatable toys, lifeboats, advertising cloth, water and underwater sports equipment, as well as soundproof walls, shock absorbers and other lightweight cargo inflation In the support.
POLYOLEFIN TARPAULIN FABRIC FEATURES :
Available size
Height: 5cm,8cm,10cm,12cm,15cm,20cm,30cm
Width: up to 2.10m
Weight: 2600gsm
Packing size: 30m/roll or customized
Thickness and color make to order
Technical data:
Product | 5cm | 8cm | 10cm | 12cm | 15cm | 20cm | ||
Pattern | Dot | Wave | Dot ,In-line | Dot | Dot ,In-line | Dot | ||
Base Cloth | Polyester 500D( High tensile) | Polyester 500D( High tensile) | Polyester 500D( High tensile) | Polyester 500D( High tensile) | Polyester 500D( High tensile) | Polyester 500D( High tensile) | ||
Space Length | cm | 5 (+/-5%) | 8 (+/-5%) | 10 (+/-5%) | 12 (+/-5%) | 15 (+/-5%) | 20 | |
Material Total Weight | g/sq.m | 2700 (+/-200) | 2700 (+/-200) | 2700 (+/-200) | 2700 (+/-200) | 2700 (+/-200) | 2700 (+/-200) | |
Tensile Strength (2 layers) | N/5cm | 4100 x 2800 (+/-300) | 4100 x 2800 (+/-300) | 4100 x 2800 (+/-300) | 4100 x 2800 (+/-300) | 4100 x 2800 (+/-300) | 4100 x 2800 (+/-300) | |
Adhesion Strength (2 layers) | N/5cm | 150 x 150 (+/-20) | 150 x 150 (+/-20) | 150 x 150 (+/-20) | 150 x 150 (+/-20) | 150 x 150 (+/-20) | 150 x 150 (+/-20) | |
Pressure | Recommended | PSI(lbs/inch2) | 15 | 15 | 15 | 15 | 15 | 15 |
Maximum | PSI(lbs/inch2) | 30 | 3030 | 30 | 30 | 30 | ||
Standard Width | Metre | 2.06 | 1.55/1.68 | 1.68/1.85 | 1.68/1.85 | 2.03 | ||
Surface | Matt | Matt | Matt | Matt | Matt | Matt | ||
Length (standard) | Metre | 30,100,150,250 | 30,100,150,250 | 30,100,150,250 | 30,100,150,250 | 30,100,150,250 |

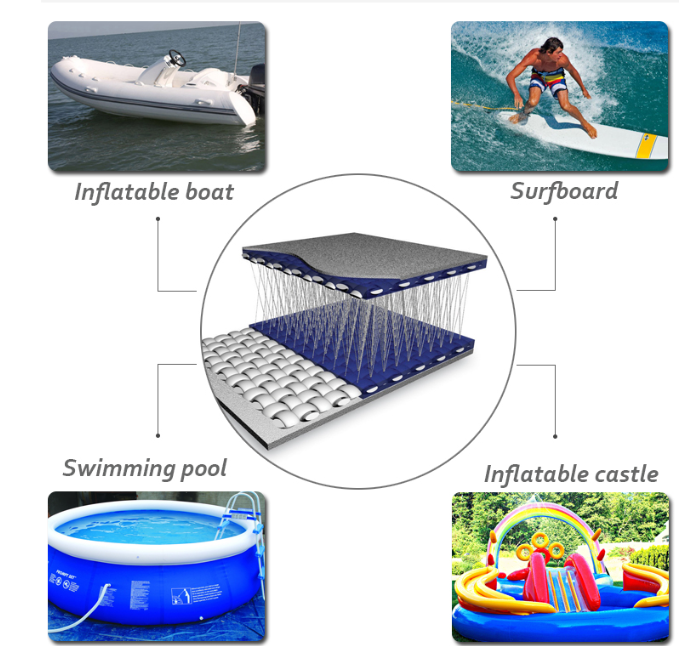

Fields of Application :
1. Inflatable boat bottom
2. Surfing board
3. Air mat
4. Bed mattress
5. RV car mat.
Inflatable swimming pool
Bedding, Mattress, air deck, surfboard, bed mattress, sup board, inflatable paddle board

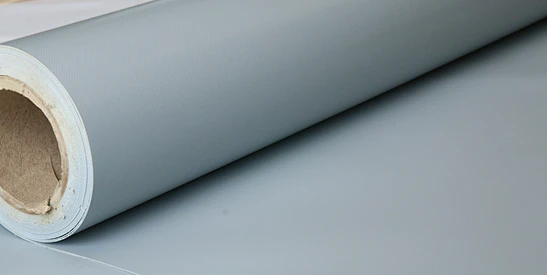

Water tank tarpaulin| W-GB002Water tank tarpaulin is a type of durable, waterproof fabric material used to construct large, temporary or semi-permanent water storage tanks. It is made from a combination of synthetic materials that are resistant to UV radiation, weathering and corrosion. This type of tarpaulin is specifically designed to withstand the elements and be used in harsh environments. Water tank tarpaulins are commonly used in areas where there is limited access to municipal water supply or where water is needed for irrigation, disaster relief, and firefighting. The tanks are easy to install and can be quickly disassembled when no longer needed. The tarpaulin can be customized to fit specific requirements and can be fabricated in various sizes and shapes to meet the needs of the user. Additionally, water tank tarpaulins are affordable and require minimal maintenance. They are a popular choice for rural communities and construction sites where access to clean water is limited.W-GB002US $0.92 - US $1.75Send Inquiry

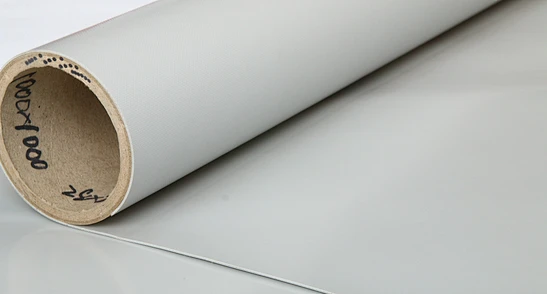

Fabric water tank| W-GB001A Fabric water tank is a type of water storage container made from a high-quality and durable fabric material. It is designed to provide a cost-effective, easy-to-install, and portable solution for storing water. The tank is available in various sizes, ranging from small, household-sized tanks to much larger tanks used for industrial or agricultural purposes. The fabric used for the tank is resistant to UV rays, punctures, and tears, ensuring that it is long-lasting and can withstand various weather conditions. The tank is also easy to maintain and can be cleaned easily using mild soap and water. Fabric water tanks are an ideal solution for areas with limited access to water or where a reliable water supply is essential for daily life, such as remote communities, farms, and disaster relief camps.W-GB001US $0.93 - US $1.85Send Inquiry
