    Tensile Membrane fabrics丨I-GB002

    Model NO :
    I-GB002

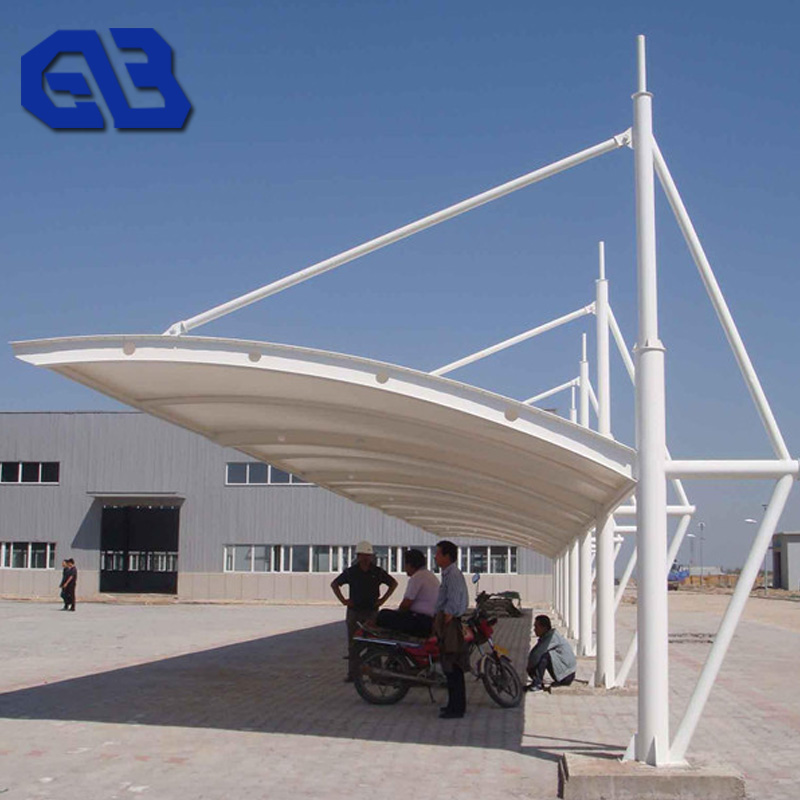

    Tensile Membrane refers to a type of lightweight roofing or covering structure composed of a fabric material that is stretched over a supporting frame. The fabric used in Tensile Membrane structures is typically a high-strength, durable material such as PVC or PTFE-coated fiberglass that is capable of withstanding various weather conditions. Tensile Membrane structures are often employed in creating large-scale canopies, roofs or shelters for outdoor events like concerts, sports games, and exhibitions. Due to their high strength and flexibility, they can also be used in the construction of permanent buildings like schools, warehouses, and factories. Tensile Membrane structures are known for their aesthetic appeal, as they are available in a variety of colors, shapes, and sizes, and can be customized to suit specific design requirements.
    Quantity :
    add to cart
    Contact Now

    Tensile Structure

    Tensile structure fabric is built with Panama base fabric and fire retardant treatment to meet NFPA701 ,B1 or M2 ,The tensile structure fabric has a lacquered finish to allow for easy maintenance and is built with great strength properties to ensure your product with withstand adverse weather conditions .

    Product Features:

    1. Excellent tensile, tearing and peeling resistance

    2. It has fire retardant, UV resistance, antibacterial and mildewproof, oil and stain resistance, acid and alkali resistance, etc.

    3. High temperature and cold resistance, anti-oxidation and weather resistance, durable

    4. Printable

    5.Highly Flexible, yet Resistant to Cracking

    6.Durable and Weather-Resistant

    7.Easy Maintenance Guaranteed

    8.Self-Cleaning System Applied

    9. Full range of Welding Options : HF, Hot Air, Sewing, etc.





    Product Specifications

    Item

    Weight(GSM)

    Standard Width(M)

    Maximum Width(M)

    HNGB1010-850

    850

    2.50 ,3.00

    3.2

    HNGB 1010-900

    900

    2.50 ,3.00

    3.2

    HNGB 1313-950

    950

    2.50 ,3.00

    3.2

    HNGB 1010-1100

    1100

    2.50 ,3.00

    3.2

    HNGB 1515-1500

    1500

    2.50 ,3.00

    3.2

    Physical Character

    Properties

    Units

    Test method

     Average value

     Average value

     Base Fabric Yarn

    Dtex

     High tenacity polyester 1500 D

    High tenacity polyester 1100 D

     Finish:

    Glossy with two side Lacquering

    Coating

    PVC coating

    Color

    As per the request

    Base Fabric Density

    Thread/cm

    FZ/T01003

      30x30 Panama

      30x30 Panama

    Width

    cm

    Up to 320

    Finished Fabric Weight

    Gram/m2

    FZ/T01003

      1500±5%

      900±5%

    Thickness - finished product

    mm

    GB/T6672-2001

      1.20±0.03

      0.80±0.03

    Tensile strength at MD

    N/5cm

    GB/T1040

     6000

     3600

    Tensile strength at CD

    N/5cm

    GB/T1040

     5500

     3400

    Tearing Strength at MD

    N/5cm

    GB/T16578

    800

    380

    Tearing Strength at CD

    N/5cm

    GB/T16578

    700

    360

    Peeling Strength

    N/5cm

    GB/T3917

    120

    120

    Temperature range

    ℃

     -20 ~ +70

     -20 ~ +70

    Flame Retardancy

    NFPA-701,B1 ,B2,M1.M2 ,

    Optional

    Optional

    Treatment

    UV

    YES

    YES

    MOQ

    M

    2000LM

    Packing

    Kraft paper

    Lead time

    20-25days

    Payment conditions:

    40% TT IN ADVANCE OR L/C AT SIGHT

    20'Container quantity:

     About 20,000sq.meter
